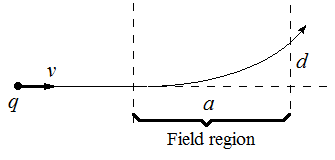

Figure 5.8

5.1   A particle of charge q enters a region of uniform magnetic field B (pointing into the page). The field deflects the particle a distance d above the original line of flight, as shown in Fig 5.8. Is the charge positive or negative? In terms of a, b, c, d, B, and q, find the momentum of the particle.
