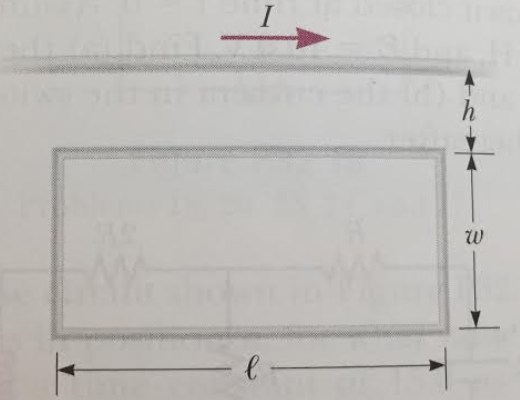

Figure P32.45
|
Homework 32.45
On a printed circuit board, a relatively long, straight
conductor and a conducting rectanglar loop lie in
the same plane as shown in Figure P32.45. Taking h
= 0.400 mm, w = 1.30 mm, and l = 2.70 mm,
find their mutual inductance.
