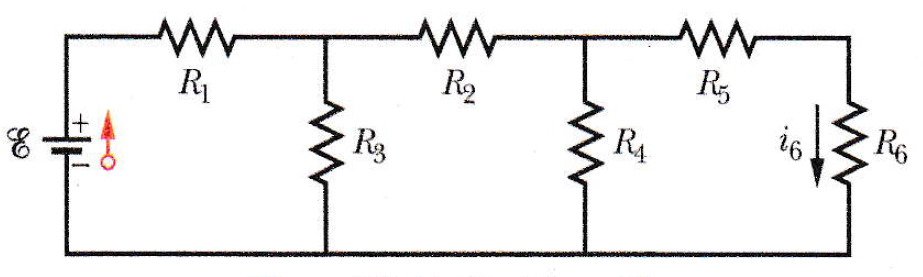

Figure 27.44
Homework 27.33
In Fig. 27-44, the current in resistance 6 is
i
6
= 1.40 A
and the resistances are R
1
= R
2
= R
3
= 2.00 Ohms. R
4
= 16.0 Ohms, R
5
= 8.00 Ohms, and R
6
= 4.00 Ohms. What is the emf of the battery?
