Homework 23.1

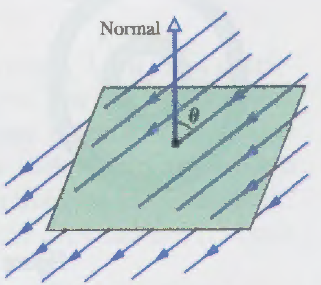

Figure 23-30
|
The square surface shown in Fig. 23-30 measures 3.2 mm on a each side.
It is immersed in a uniform electric field with magnitude E = 1800 N/C and
with field lines at an angle of q = 35o
with the normal to the surface as shown. Take that normal to be directed "outward"
as though the surface were one face of a box. Calculate the electric flux through the surface.
